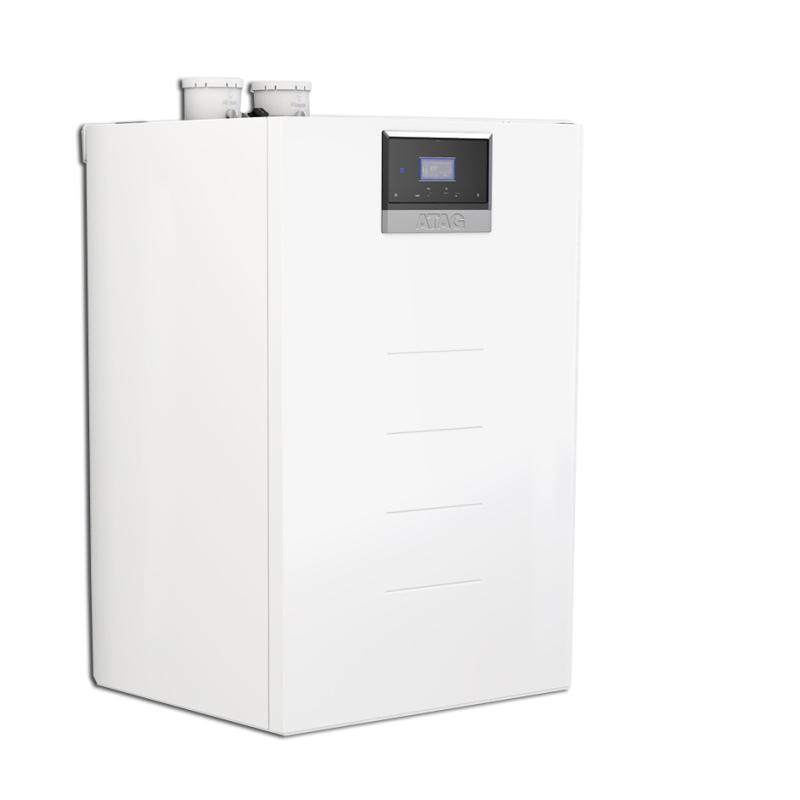

Atag XL140 System Boiler AT-B-XL140

Name: Atag XL140 System Boiler AT-B-XL140
SKU: 111022
Price: 4710.82 GBP
Availability: OutOfStock

SKU

111022

£4,710.82

Overview

Atag XL 140 Wall Mounted Condensing Boiler SA14000G

Description

Peace of Mind

The use of durable materials and stainless steel heat exchangers results in minimal maintenance intervals and maximises the operating life of the XL boiler.

Efficiency

The ATAG XL boiler stays at a consistently high level of efficiency during the entire lifespan of the boiler thanks to the stainless steel heat exchanger.

Reliability

Sustainability and stainless steel go hand in hand. Stainless steel does not rust and will not wear. After 15 years, just as economical as on the day of purchase.

The ATAG XL-Series: Reliable & Efficient

Details

ATAG XL140

Contractors go to boiler for medium to large commercial properties. ATAG's largest output System boiler with a cascade of up to 960kW. This System boiler is designed to efficiently heat commercial properties with the possibility of providing domestic hot water via aditional components. It can be used in cascade arrangements of up to 8 boilers

Significantly reduced installation times. Can be installed in-line or back-to-back as wall mounted or free standing cascade arrangements
Integral modulating ‘A’ rated pump
Built-in cascade controller and timer
Easy plug & play BUS communication cable for cascade arrangements
Low energy consumption
5 year boiler warranty including parts and labour *
Stainless Steel Heat exchangers for high efficiency over the entire lifetime of the boiler

Specifications

Application	System boiler
Depth	460 mm
Flue / Air intake	Concentric
Gas inlet pressure min/max nat. gas	G20: 20 mbar
Gas type	G20
Height	1065 mm
LWA Sound power level, indoors	53 dB
Restriction diameter G31	5.7 mm
Weight boiler (empty)	87 kg
Width	660 mm
