Flexfiller Mini 230D Twin Pump Wall Mounted FC FILL 230D MINI 17456

SKU
115418
£1,108.00
-
+

Overview

Mini 230D Twin Pump

Compact and totally enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.

Available in single or twin pump configuration.

The Flexfiller Mini Digital is a narrow wall mounted, low flow rate (0.4 l/min) top-up pressurisation unit with 2 litre break tank. Ideal for large residential or small commercial application. For use on heating systems utilising a 300 litre expansion vessel or less, or chilled systems utilising a 50 litre expansion vessel or less.

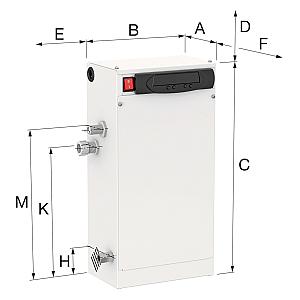

Type

A

mm

B

mm

C

mm

D

mm

E

mm

F

mm

H

mm

K

mm

M

mm

Flexfiller Mini 130D/230D 150 240 480 500 150 800 70 305 345

Flexfiller Mini Digital

Compact and totally enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.
Available in single or twin pump configuration.

The Flexfiller Mini Digital is a narrow wall mounted, low flow rate (0.4 l/min) top-up pressurisation unit with 2 litre break tank. Ideal for large residential or small commercial application. For use on heating systems utilising a 300 litre expansion vessel or less, or chilled systems utilising a 50 litre expansion vessel or less.

Application:

  • Commercial.
  • Industrial.
  • Residential.


System Volume (Guide): < 2,600 litres.

  • For system volumes up to 2,600 litres.
  • Break Tank: 2 litre break tank with type AB Air Gap Fluid Cat 5.
  • MODBUS Communication output.
  • System quick-fill mode. Password protection for parameter entry.
  • Pressure settings in 0.1 bar increments.
  • Service reminder option (12 months).
  • Pump pulse option (2 second pulse if inactive for 60 days).
  • Flood protection options.
  • Flow applications (0.4 l/min).
  • Event logging for pump start, individual pump run hours counter, electrical interruption and common alarm.
  • Volt free contacts for common fault, high pressure, low pressure, pump fault, pressure transducer fault.
  • Electric pump, 230V 50Hz 1ph.
  • Colour: White (RAL 9910).
More Information
Delivery Next Business Day
EAN Code 08712874174566

Technical Specifications

Operating Conditions:
Maximum system temperature: 85 ºC. Maximum ambient temperature: 40 ºC. Relative humidity 95% non-condensing. Noise Rating Data: < 75 dBA.
Factory fit options:
Single or twin pump version. High water level. BACnet communication protocol (in addition to MODBUS communications).
Certifications and Standards Applied:
PED 2014/68/EU Sound Engineering Practice. IEE - Electrical Safety Guidance. EMC 2004/108/EC. BS 7074 Parts 1 to 3. Machinery Directive 95/16/EC. Electronic Components have been tested and comply with the EMC Directives. EN 61000-6-2: Generic Standards – Immunity standard for industrial environments. EN 61000-6-3: Generic Standards – Emission standard for residential, commercial and light industrial environment. CE marked components, where applicable. WRAS approved float valve to BS1212. IP54 (BS EN60529) rated controller.
Material of Construction:
Cabinet: Mild steel CR4. Float: WRAS Approved Torbeck Side Entry. Break Tank: Stainless Steel 304. Pump: PEDROLLO / ULKA (Unit dependant. See pump details for more information). Connection: Brass / Polypropylene. Pipework: Braided flexihose / EPDM. Finish: Powder coated.
