Flexfiller Standard 150D Single Pump Floor Standing FC FILL 150D 17396

Name: Flexfiller Standard 150D Single Pump Floor Standing FC FILL 150D 17396
Brand: Flamco
SKU: 115410
Price: 1862.83 GBP
Availability: InStock

SKU

115410

£1,862.83

Overview

Flexfiller 150D

Cabinet: Mild steel CR4. Float:
WRAS Approved Torbeck Side Entry.
Break Tank: WRAS Approved Polypropylene.
Pump: PEDROLLO / ULKA (Unit dependant. See pump details for more information).
Connection: Brass / Polypropylene.
Pipework: Braided flexihose / EPDM.
Finish: Powder coated.
Suitable for membrane pressure expansion tank
Suitable for compressor-controlled automatic expansion unit
Outer pipe diameter 1 return [mm] 21.3
Pressure [bar] 1 - 5
Height [mm] 800
Width [mm] 470
Depth [mm] 320

Type	Dimensions
Type	A(mm)	B(mm)	C(mm)	D(mm)	E(mm	F(mm)	H(mm)	K(mm	M(mm)
Flexfiller 125D - 280D	470	320	800	500	150	800	225	550	590
Flexfiller 2160D	600	390	800	500	150	800	225	550	590

Details

Flexfiller Standard 150D Single Pump Floor Standing FC FILL 150D 17396

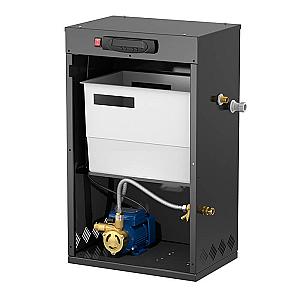

Flexfiller 150D Single Pump

Compact and totally enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.
Available in single or twin pump configuration.

The Flexfiller is a floor standing, high flow rate (<18 l/min) top-up pressurisation unit with 18 litre break tank.

Application:

Commercial.
Industrial.
Residential.

System Volume (Guide): < 300,000 litres.

For system volumes up to 300,000 litres.
Break Tank: 18 litre break tank with type
AB Air Gap Fluid Cat 5.
MODBUS Communication output.
System quick-fill mode.
Password protection for parameter entry.
Pressure settings in 0.1 bar increments.
Service reminder option (12 months).
Pump pulse option (2 second pulse if inactive for 60 days).
Flood protection options. High flow applications (<18.0 l/min).
Event logging for pump start, individual pump run hours counter, electrical interruption and common alarm.
Volt free contacts for common fault, high pressure, low pressure, pump fault, pressure transducer fault.
Electric pump, 230V 50Hz 1ph (110V 60Hz 1ph available upon request).
Colour: Black (RAL 9005).

More Information

More Information
Delivery	Next Business Day
EAN Code	08712874173965

Specifications

Technical Specifications

Operating Conditions:
Maximum system temperature: 85 ºC. Maximum ambient temperature: 40 ºC. Relative humidity 95% non-condensing. Noise Rating Data: < 75 dBA.
Factory fit options:
Single or twin pump version. High water level. BACnet communication protocol in place of MODBUS connection.
Certifications and Standards Applied:
PED 2014/68/EU Sound Engineering Practice. IEE - Electrical Safety Guidance. EMC 2004/108/EC. BS 7074 Parts 1 to 3. Machinery Directive 95/16/EC. Electronic Components have been tested and comply with the EMC Directives. EN 61000-6-2: Generic Standards – Immunity standard for industrial environments. EN 61000-6-3: Generic Standards – Emission standard for residential, commercial and light industrial environment. CE marked components, where applicable. WRAS approved float valve to BS1212. IP54 (BS EN60529) rated controller.
Material of Construction:
Cabinet: Mild steel CR4. Float: WRAS Approved Torbeck Side Entry. Break Tank: WRAS Approved Polypropylene. Pump: PEDROLLO / ULKA (Unit dependant. See pump details for more information). Connection: Brass / Polypropylene. Pipework: Braided flexihose / EPDM. Finish: Powder coated.
